Here’s a practical guide to troubleshooting 5 common CNC punching machine errors, including symptoms, causes, and actionable fixes to minimize downtime and ensure precision:

1. Misalignment or Off-Center Punching

Symptoms:

- Holes/features not matching the programmed position.

- Uneven material deformation or burrs.

Causes:

- Worn tool holders or loose dies.

- Incorrectly calibrated machine axes.

- Sheet slippage due to improper clamping.

Fixes:

- Check tool alignment: Use a dial indicator to verify punch/die concentricity.

- Re-calibrate the machine: Perform axis calibration via the CNC control panel.

- Secure the material: Ensure clamps or vacuum systems hold the sheet firmly.

2. Tool Breakage or Premature Wear

Symptoms:

- Chipped or cracked punches.

- Inconsistent hole quality (e.g., ragged edges).

Causes:

- Excessive tonnage for the tool/material.

- Incorrect tool clearance or lubrication.

- Hardened/dirty material damaging the tool.

Fixes:

- Adjust tonnage: Match punch force to material thickness/type (e.g., 30 tons for 6mm steel).

- Lubricate tools: Apply anti-seize grease to punches and dies.

- Inspect material: Remove surface debris (rust, scale) before processing.

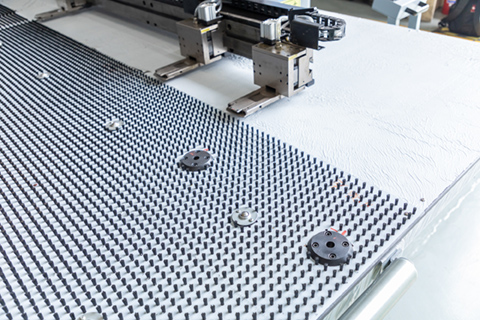

3. Material Feeding Errors

Symptoms:

- Sheet not advancing correctly.

- Misaligned features across the sheet.

Causes:

- Worn feed rollers or servo motor issues.

- Incorrect program parameters (e.g., feed rate, step distance).

- Debris blocking the material path.

Fixes:

- Clean the feed system: Remove metal chips or dirt from rollers and guides.

- Replace worn rollers: Check for flat spots or uneven wear.

- Verify program settings: Ensure step distance matches the sheet’s actual dimensions.

4. CNC Control/Software Glitches

Symptoms:

- Machine stops mid-program.

- Incorrect tool selection or erratic movements.

Causes:

- Corrupted program files or outdated firmware.

- Electrical interference or faulty wiring.

Fixes:

- Reboot the CNC controller: Power-cycle the system to reset errors.

- Re-upload the program: Transfer the file again to eliminate corruption.

- Check wiring connections: Inspect cables for loose terminals or damage.

5. Excessive Noise or Vibration

Symptoms:

- Loud knocking or grinding sounds during operation.

Visible machine shaking.
