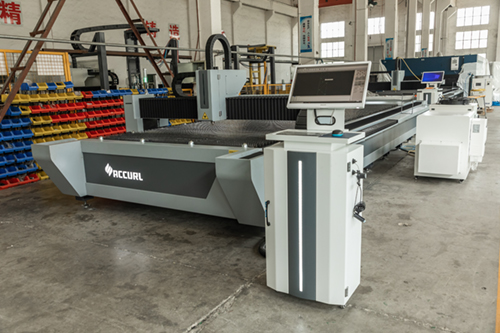

SMART KJG SERIES FIBER LASER CUTTING MACHINE
The following elements are included:
• Laser Cutting Head: Raytools laser cutting head;Precitec Cutting head
• CNC Controller: CypCut Fscut 2000 CNC System; BECKHOFF TwinCAT Touch Screen Control System
HYPCUT Touch FSCUT8000 TwinCAT CNC System
• Cutting Area: 3000x1500mm, 4000×20000mm,6000x2000mm,6000x2500mm
• Cutting Speed: Max 100m/min; Positioning: 140m/min; Accelerations:1.6G
FULLY ANNEALED FRAME
ACCURL steel frames undergo annealing at over 600⁰ to relieve stress. They are built to last years of heavy use without distortion. Auto changing pallet system allows over 1800kg loading weight.
A heavier frame means less vibration and better accuracy. the machine frames are reinforced to minimize twists and deformation while the robust frame of the machine is joined to the chassis by steel bars.

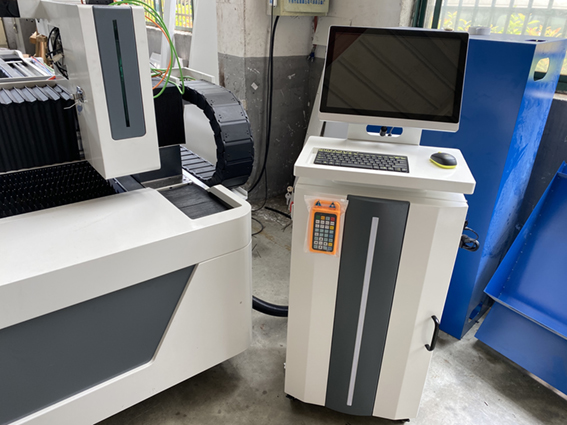

CNC CONTROL SYSTEM
The FSCUT2000 laser cutting control system of an economical laser cutting control system.
Widely used in the field of metal and nonmetal laser cutting. Because of its outstanding performance in the field of fiber laser cutting, by the vast number of high-end users.

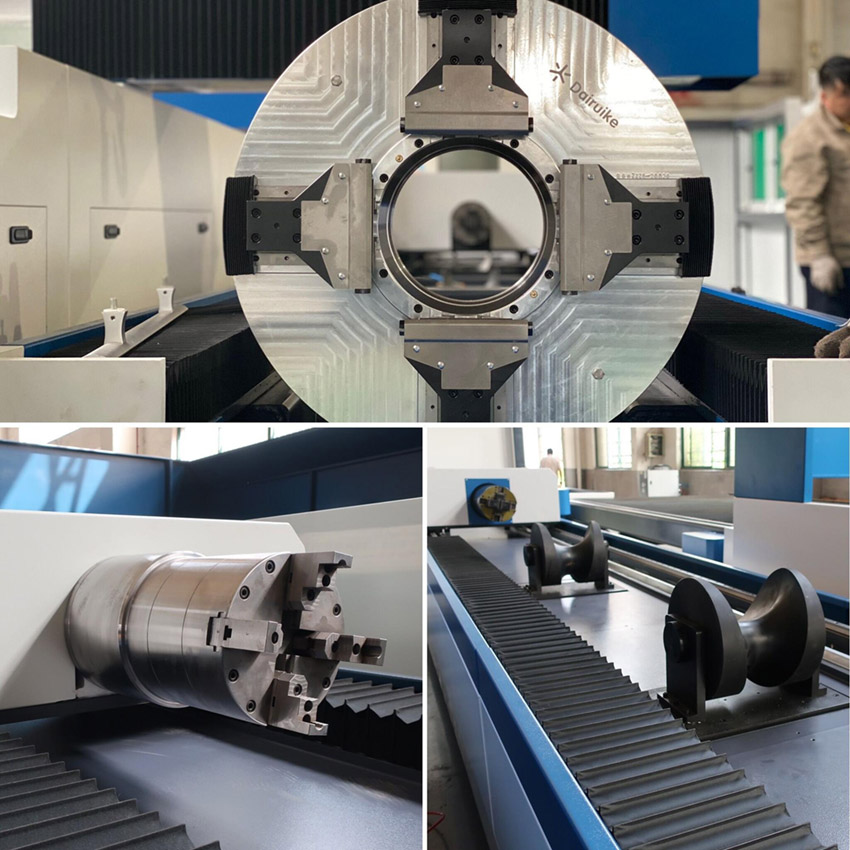

PROFILE & PIPE CUTTING SYSTEM(OPTIONAL)
The Smartline series offers unparalleled versatility.accurl optional tube and pipe cutting system has the capability to precisely cut pipe/tube and makes it a necessity for anyone who needs precision parts made from various materials, sizes, and thicknesses.
| MACHINE DIMENSION AND WEIGHT |
WORKING AREA |
| MACHINE MODEL |
3015 |
4020 |
MACHINE MODEL |
3015 |
4020 |
| Lenght(mm) |
8000 |
10500 |
X axis(mm) |
3060 |
4060 |
| Width(mm) |
2600 |
3280 |
Y axis(mm) |
1540 |
2050 |
| Height(mm) |
2250 |
2250 |
Z axis(mm) |
100 |
100 |
| Weight(kg) |
12000 |
15000 |
Max.sheet weight(kg) |
1100 |
1800 |
