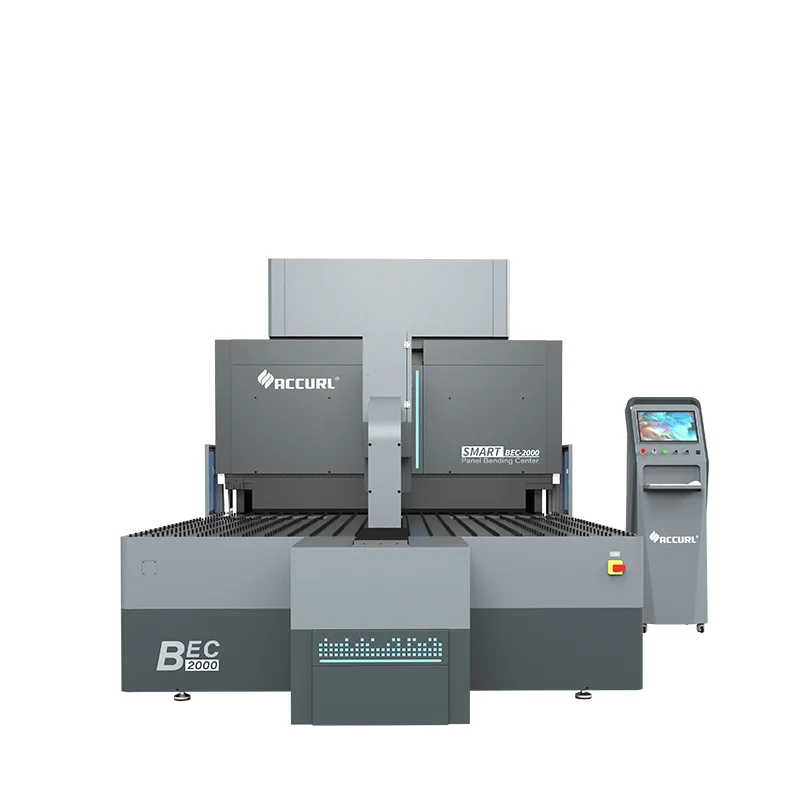

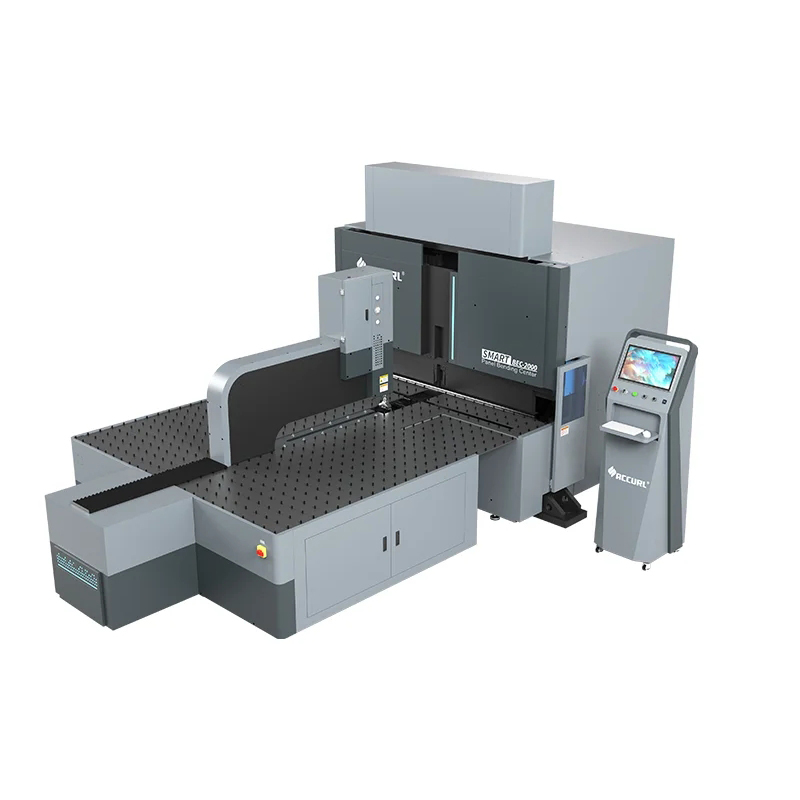

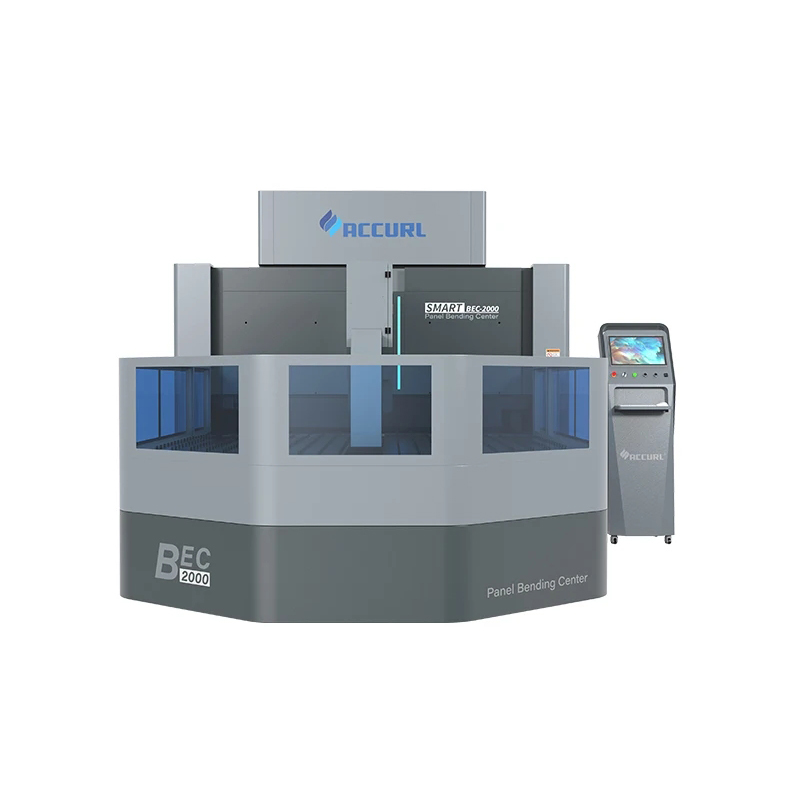

BCE Series panel bender is the new generation automated bending solutions, a benchmark that indicates the upgrading to automation of sheet metal fabricating industry. It can obviously reduce the labor cost and at the same time it can realize 300% higher efficiency comparing to traditional press brake up to 0.3s per bending. Full electro servo transmission plus closed-loop BUS control makes the accuracy far better.
Item No :
BCE-2000Product Origin :
ChinaColor :
Customer ChooseWeight :
15800

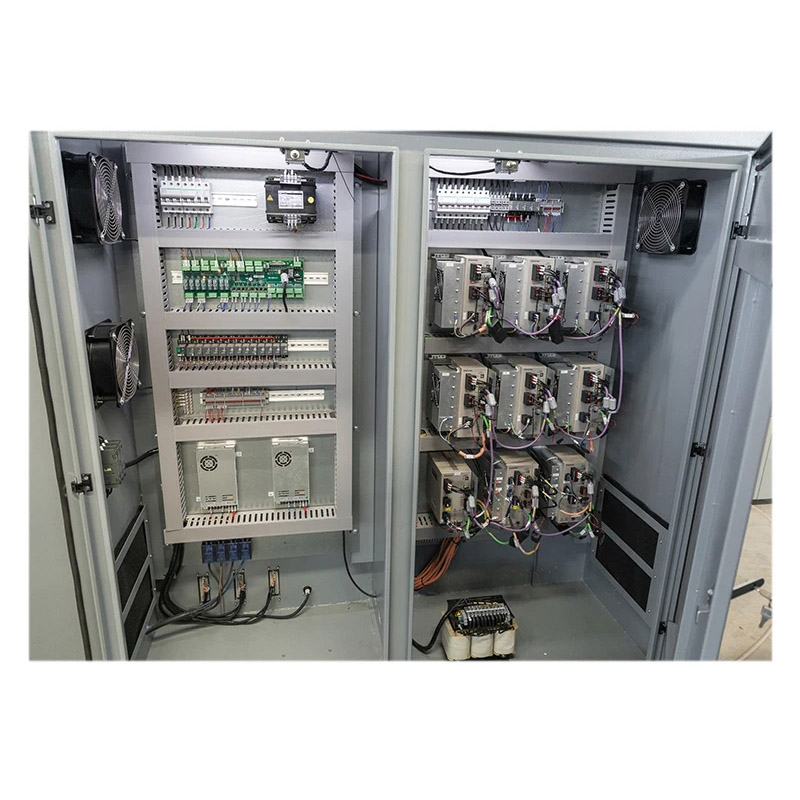

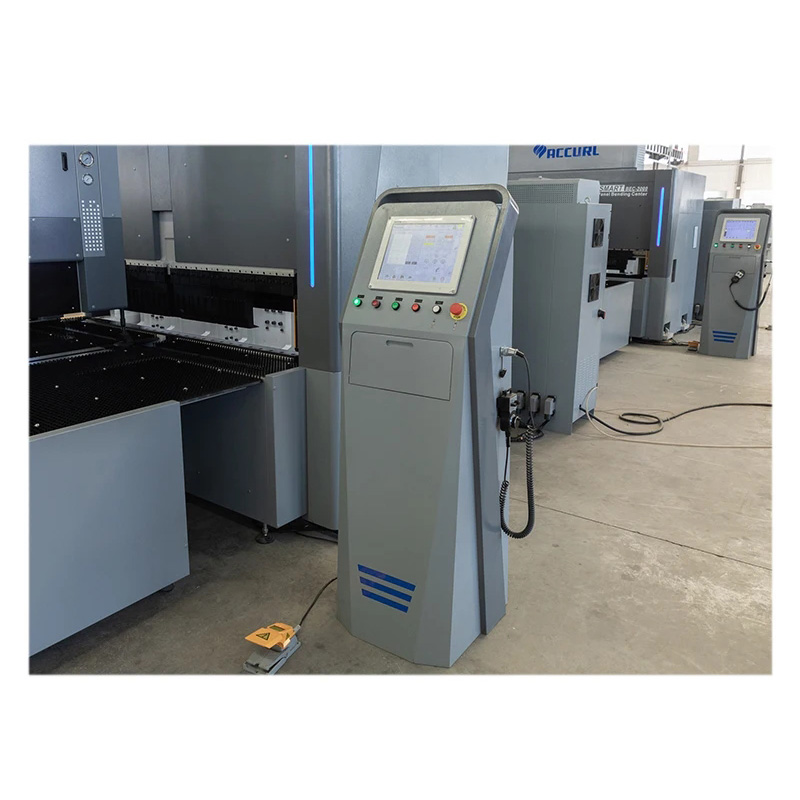

CONTROLLING SYSTEM

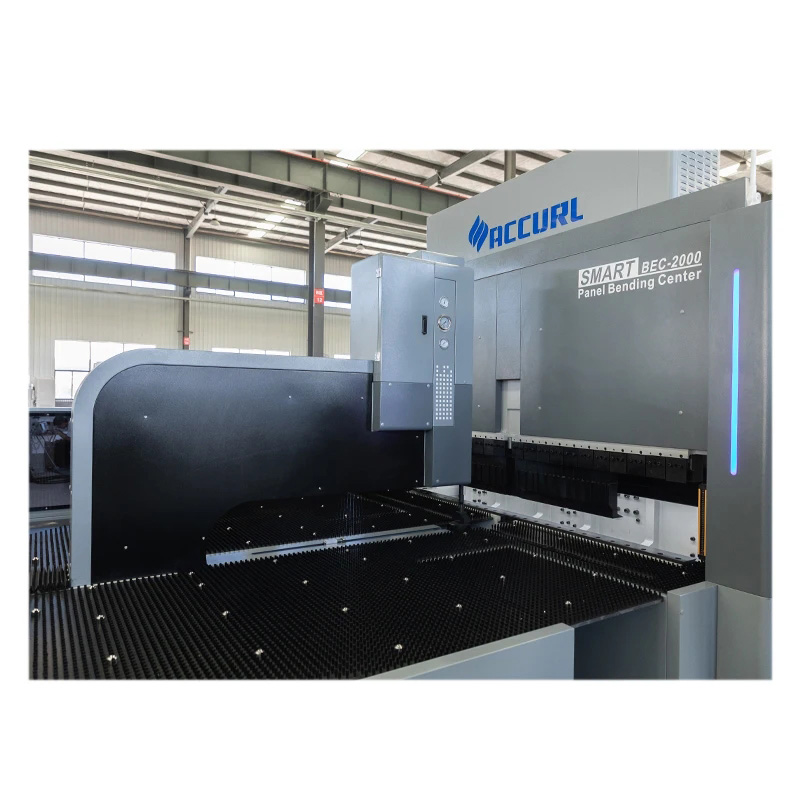

In view of the high-intensity motion requirements of the panel bender, the frame adopts an arch design, which is thickened and widened.
| Name | Unit | BCE-1400 | BCE-2000 | BCE-2500 |
| Max. Bending Length | mm | 1400 | 2000 | 2500 |
| Max. Sheet Width | mm | 1400 | 1500 | 1500 |
| Max. Bending Height | mm | 170 | 170 | 170 |
| Dimensions（L×W×H） | mm | 3000x2000x2600 | 3100x5300x2600 | 3100x6050x2600 |
| Full Power |
KW | 36 | 45 | 45 |
