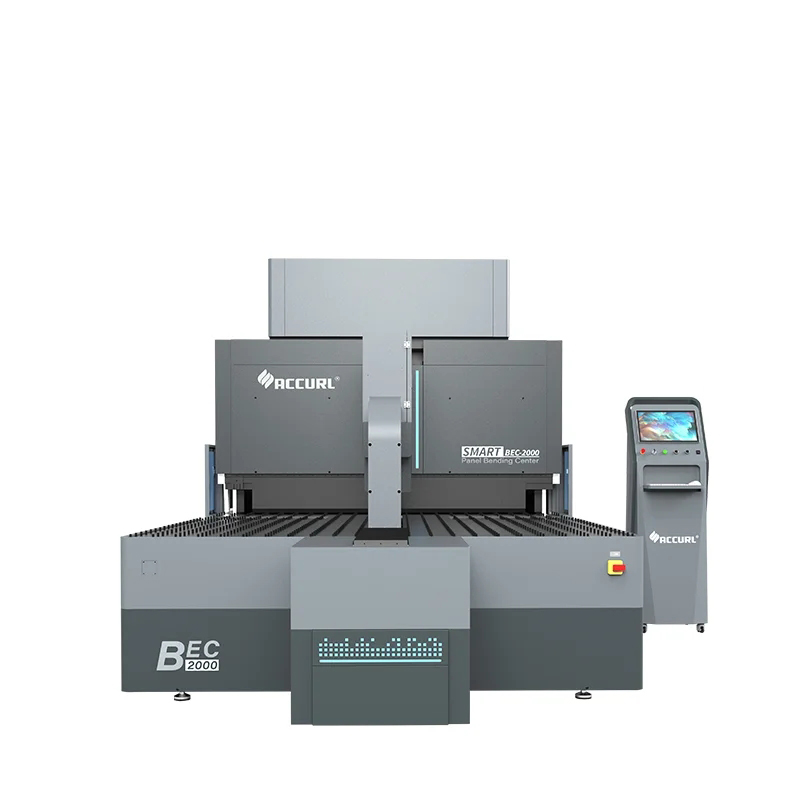

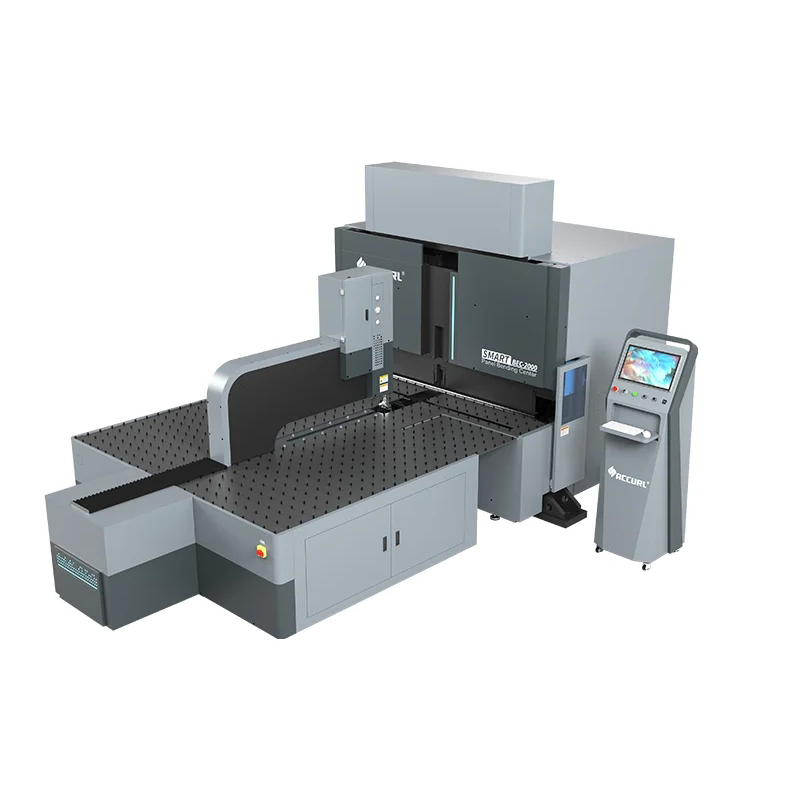

ACCURL New Automatic Bending Center 1400 Panel Bender

ACCURL BCE series PANEL BENDER CENTER

BCE Series panel bender is the new generation automated bending solutions, a benchmark that indicates the upgrading to automation of sheet metal fabricating industry. It can obviously reduce the labor cost and at the same time it can realize 300% higher efficiency comparing to traditional press brake up to 0.3s per bending. Full electro servo transmission plus closed-loop BUS control makes the accuracy far better.

  • Item No :

    BCE-1400
  • Product Origin :

    China
  • Color :

    Customer Choose
  • Weight :

    14300

Panel Bender Center BCE1400 Sheet Metal Servo Bending Center

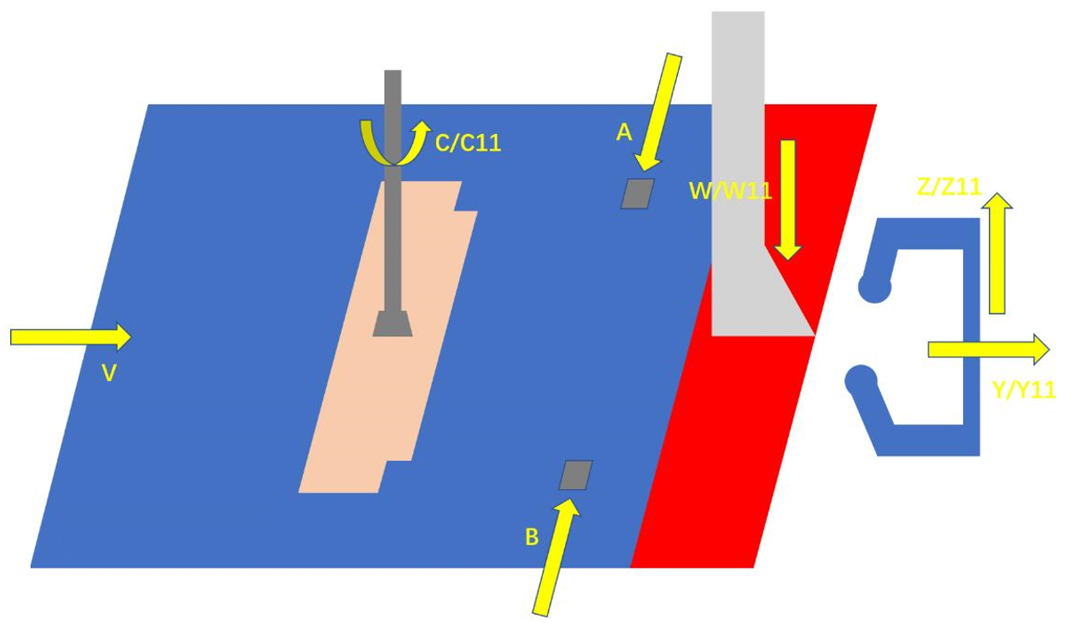

CNC AXES-11 AXES
A/B axes: Positioning axes V axis: Feeding axis C/C11 axes: Rotation axes W/W11 axes: Pressing axes Z/Z11 axes: Tooling up&down motion axes Y/Y11axes : Tooling forward&dbackward motion axes

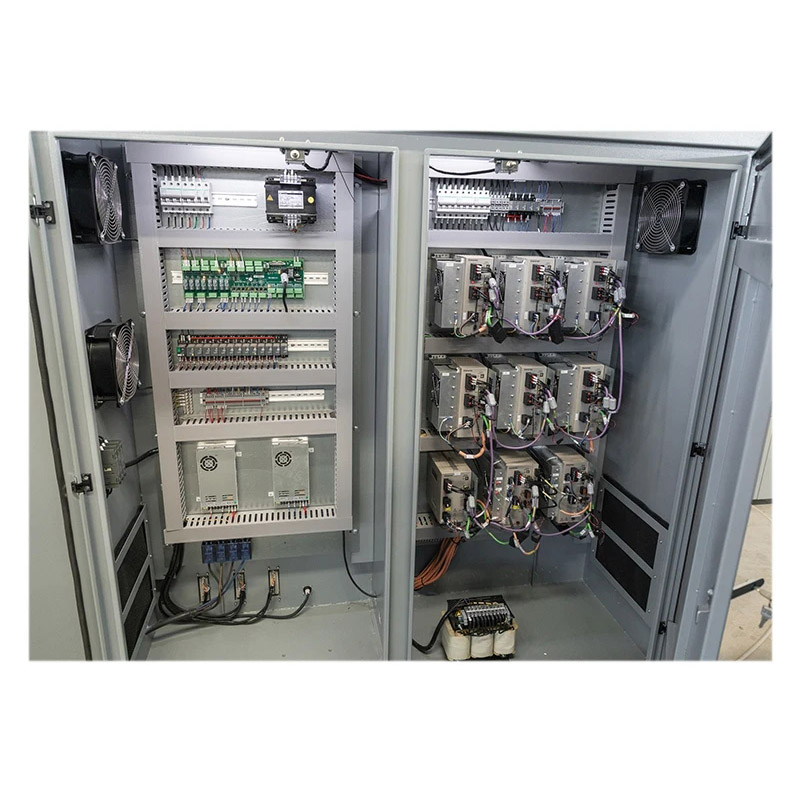

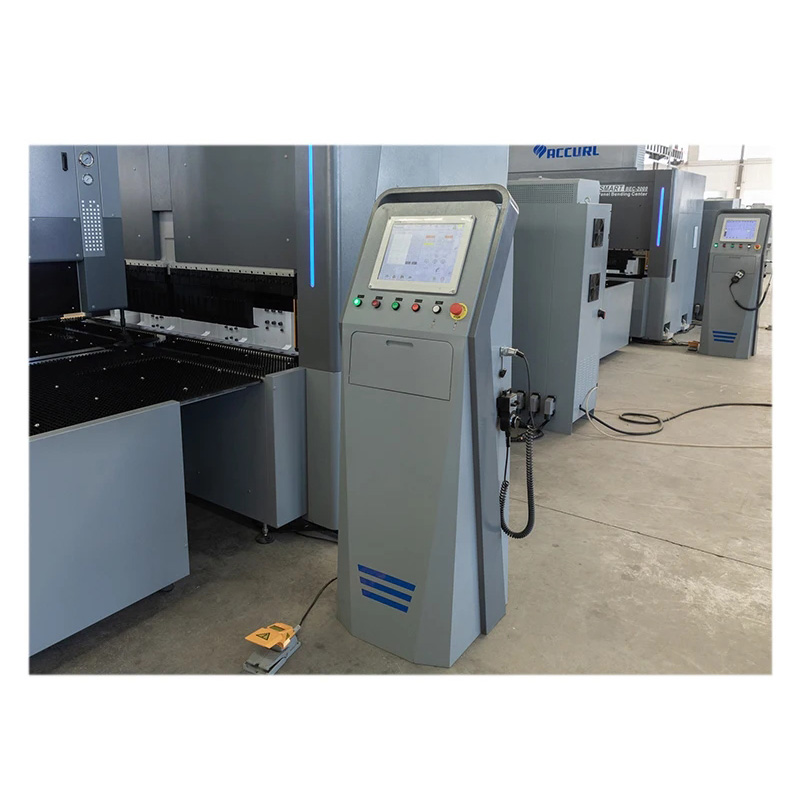

CONTROLLING SYSTEM

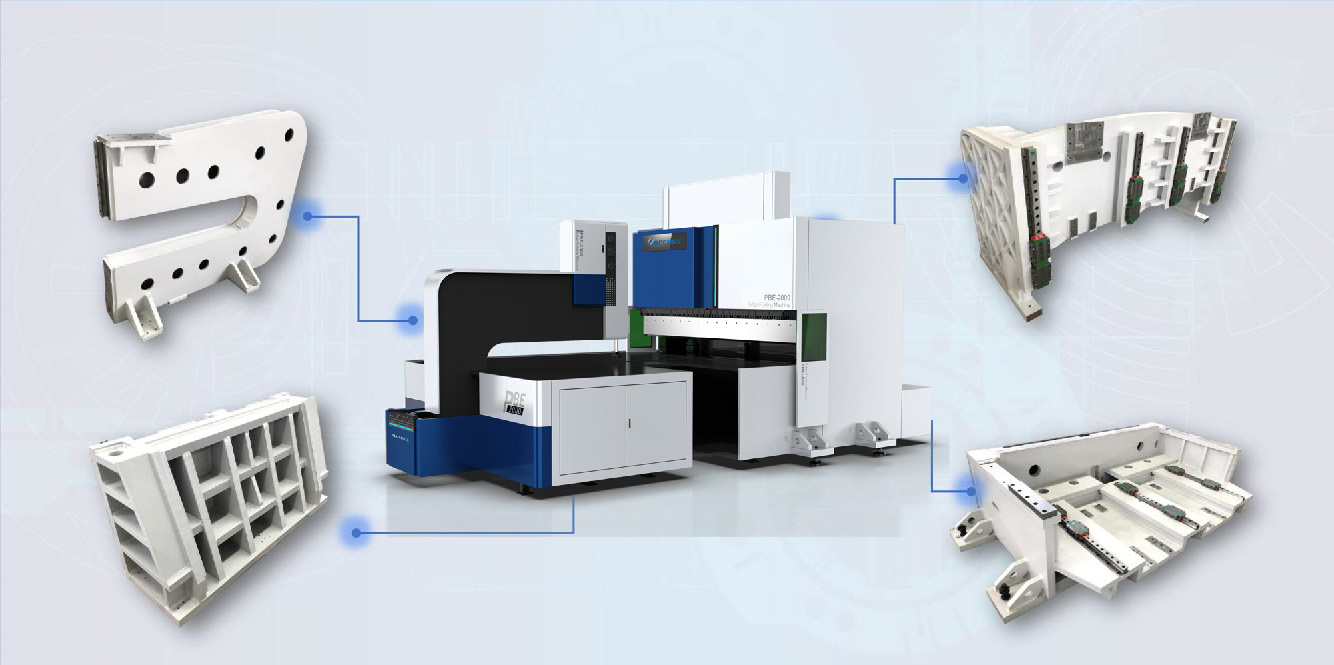

In view of the high-intensity motion requirements of the panel bender, the frame adopts an arch design, which is thickened and widened.

The frame is tempered, annealed and aged twice to ensure the long-term running accuracy, stability and high rigidity of the machine.

Name Unit BCE-1400 BCE-2000    BCE-2500
Max. Bending Length mm 1400 2000 2500
Max. Sheet Width mm 1400 1500 1500
Max. Bending Height mm 170 170 170
Dimensions(L×W×H) mm 3000x2000x2600 3100x5300x2600 3100x6050x2600
Full Power
KW 36 45 45

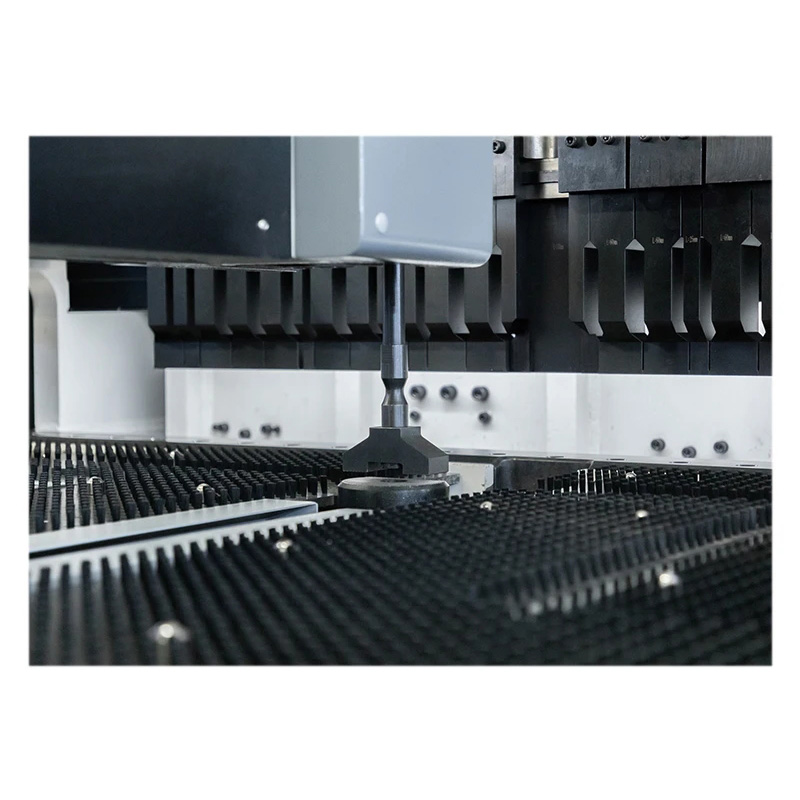

AST TOOLS FOR SPECIAL APPLICATIONS
The AST tools are modular in length, engaging and disengaging quickly and automatically between the blank and the bending blades. They are used to make bends that are shorter than the side being bent.
