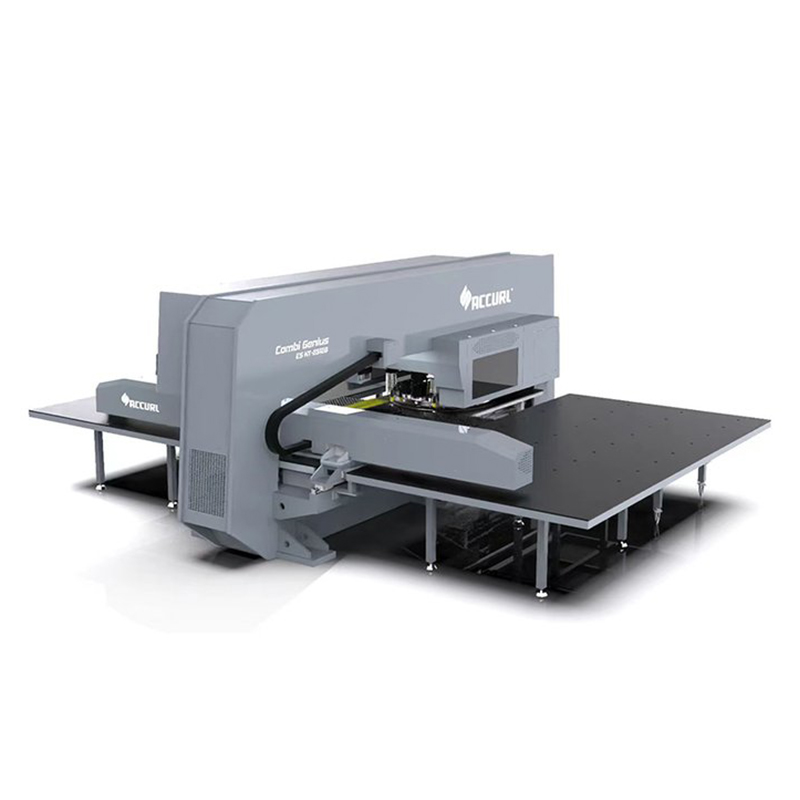

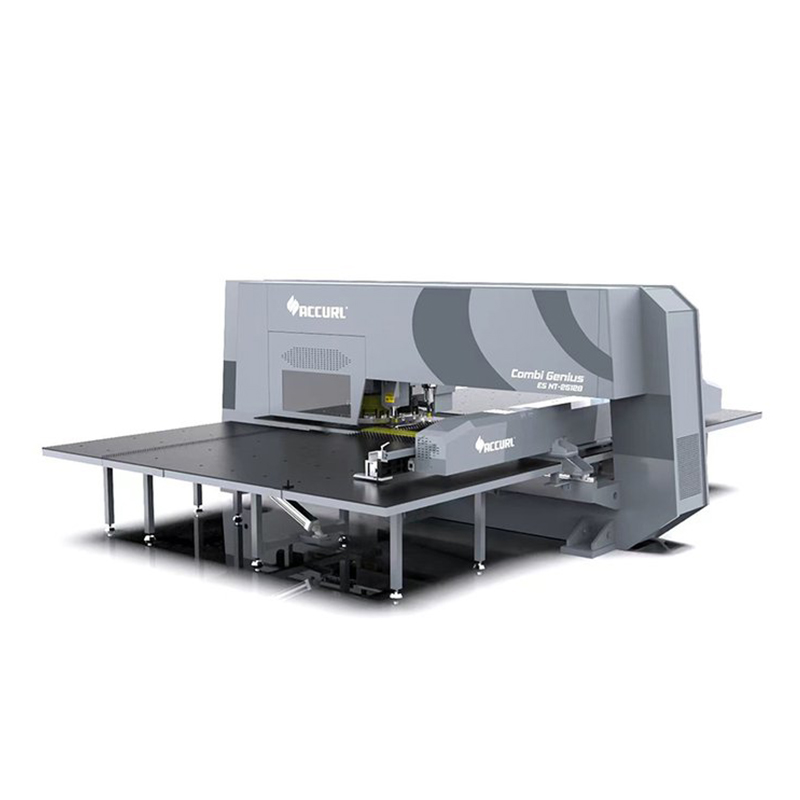

The CNC punch and laser combined machine not only has servo punching processing technology, but also has the characteristics of high laser cutting efficiency and good cutting quality, which can realize punching holes, forming, laser cutting and other functions, and provide a new intelligent manufacturing solution for your production. The combined machine consists of a punch machine, a laser cutting system and an electrical system. The combined machine adopts a complete set of German Rexroth CNC system and drive.
Item No :
ESNT-50TColor :
customizedWeight :
1580050T Punch Laser Combined Machine
Model: ES NT -50T
Introducing foreign advanced technology and combining with our company's mature products, we develop a high-grade numerical control machine. The system and transmission adopt a complete set of German Rexroth configuration, the main motor is air cooled, and the driving system can be remotely diagnosed, with low noise, high speed, and high efficiency features.

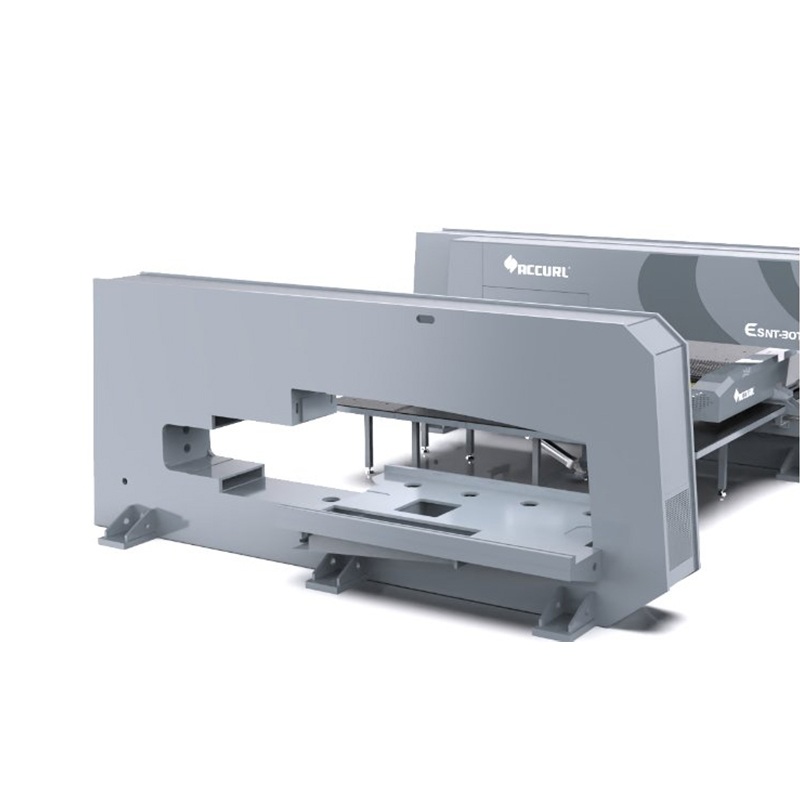

O-type closed press frame special for servo punch press, holistic welding structure, stress relief from 2 times of tempering treatment. The strong rigidity and high tonnage ensure the stable accuracy for long time, extend the service life of the machine and tools, and improve the positioning precision, reliability and durability of the punch press.

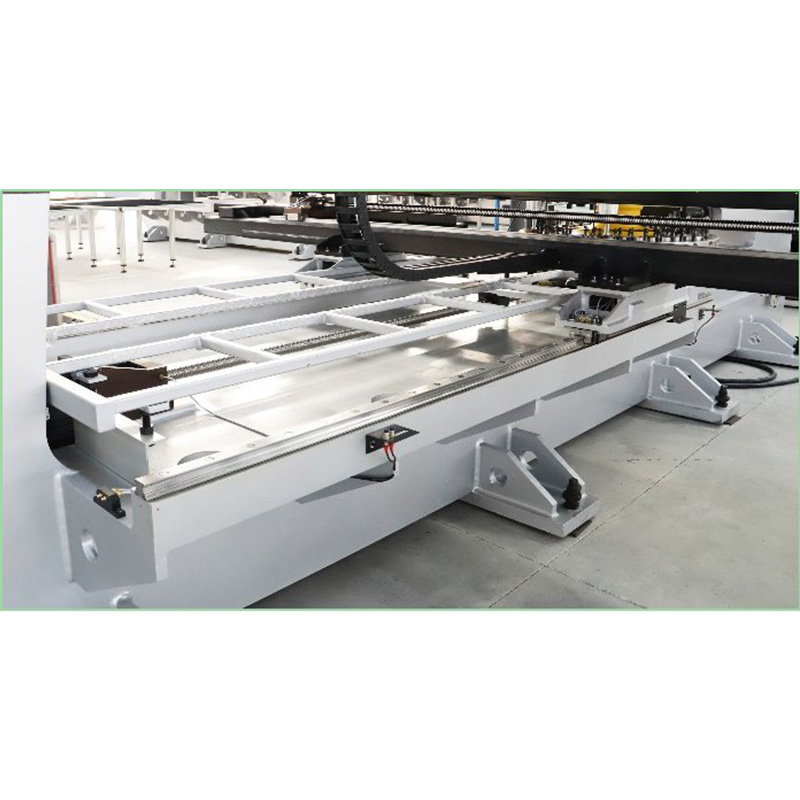

The big space between guider will benefit with processing accuracy while fabricate large size sheet, and it has the better balance capacity while moving in high speed. The auxiliary platform can move with the sheet, reduce 30% of the friction force between the plate and brush platform.

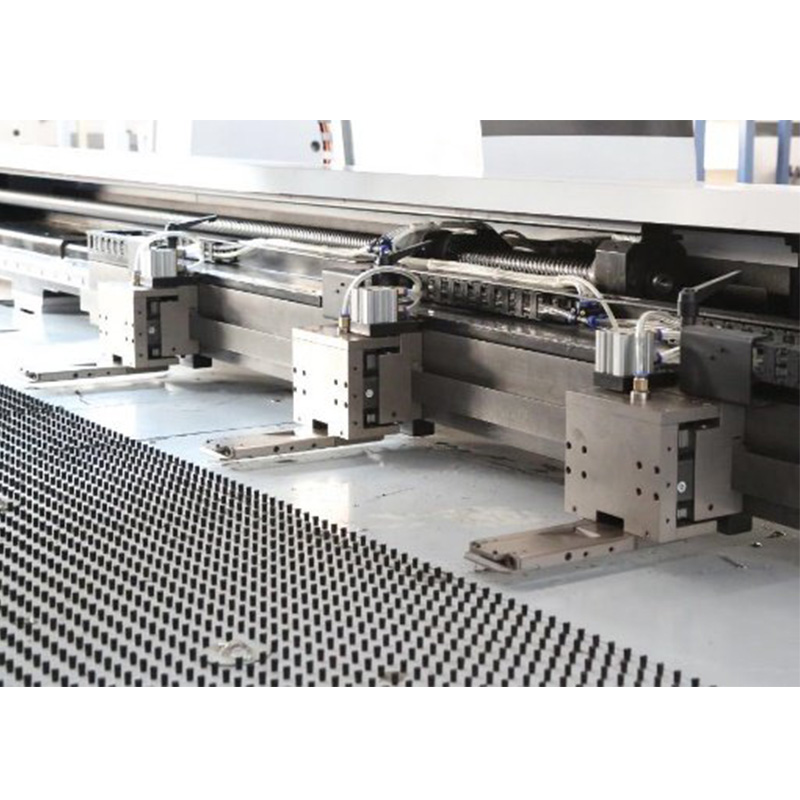

The pneumatic floatable clamps reduce the deformation of the plate. With long clamps carriage, strong rigidity, clamps can move easily, the clamp self-protection function makes no dead area for punching on sheet.

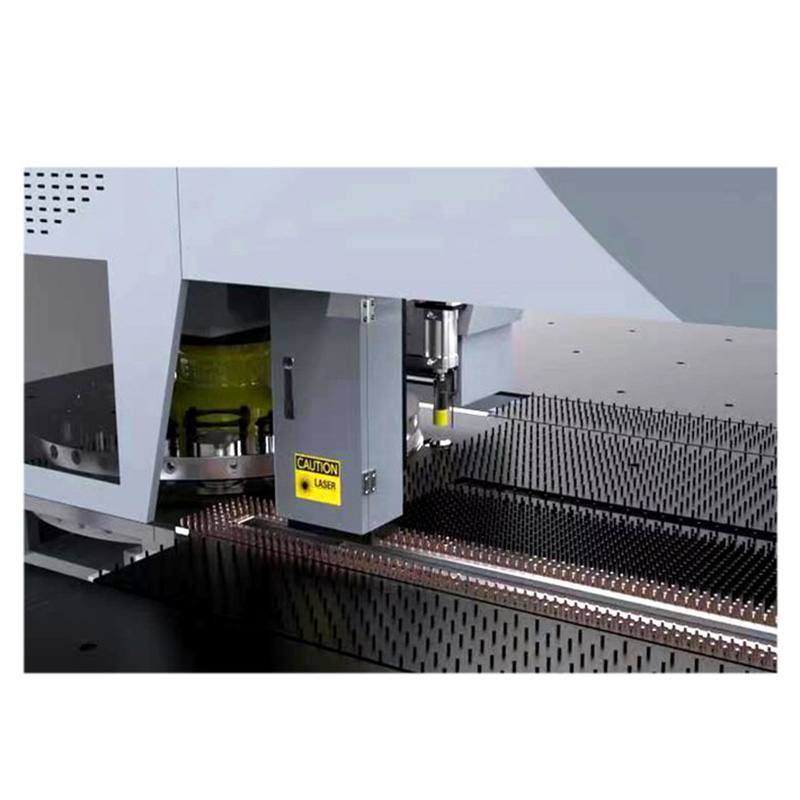

Laser Cutting System

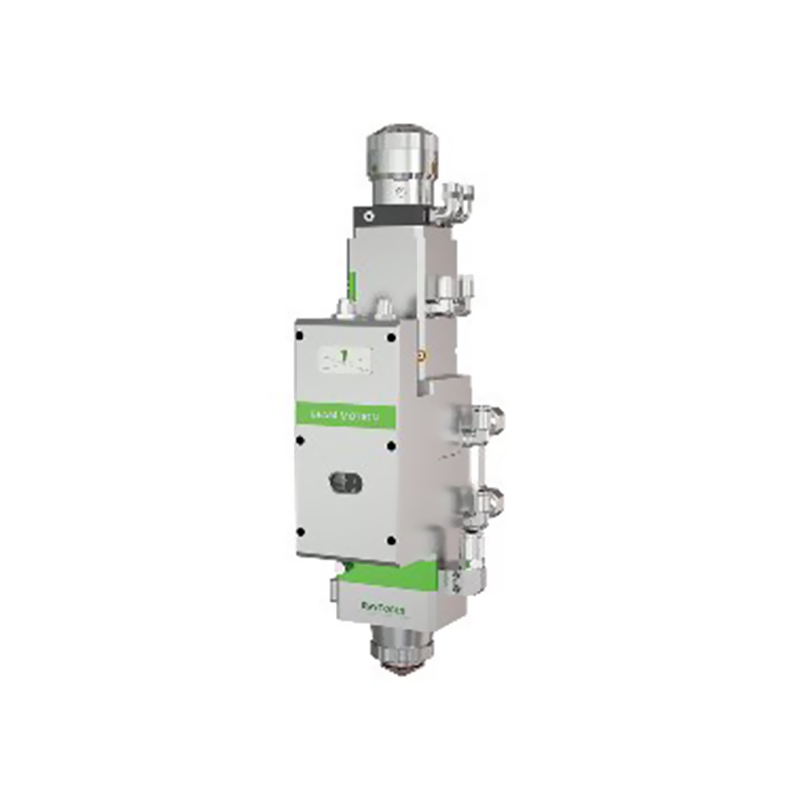

The laser cutting system mainly includes three parts: cutting head, fiber laser generator, gas circuit and water circuit system.
Parameter |
Unit |
technical indicators |
Laser Power Output |
W |
3000 |
Working Area |
mm |
1500x2000mm |
Cutting Accuracy |
mm |
±0.1 |
