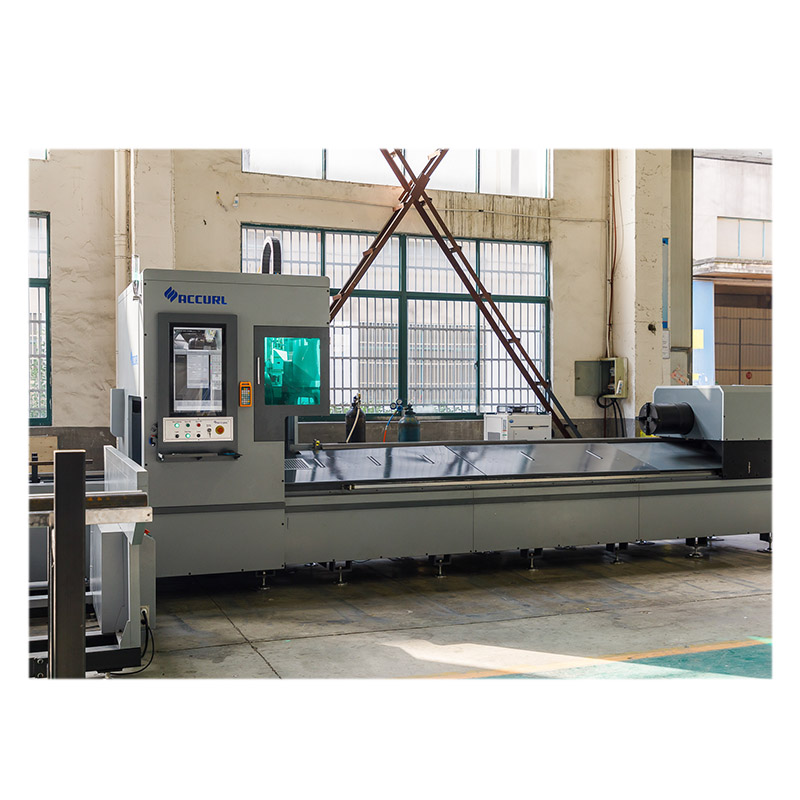

6KW Fiber Laser Tube Cutting Machine
*User friendly FSCUT 4000 TwinCAT CNC control
* Unique features:
* Maximum simultaneous positioning speed: 120m/min.
* Acceleration speed: 13 m/ s2 (1.2G).
* CNC and CAM can calculate complex profiled sections
* Energy efficiency: greatly reduced power consumption.
* IPG Resonator. Power output from 1000W To 6000W
* Advanced Swiss RayTools AGcutting head (with air cross blast).
* φ8-440mm pipe processing range is optional
* The patented technology of three-chuck and zero-tail material high utilization of raw material.
* Effective high to low pressure gas exchange system.
* Automatic time and unit cost calculation function.
* Network connection from external.
* Smoke extraction (included in series models).
* The “L” shape of the machine assures total flexibility for processing round, square, rectangle “C” / “H” / “I” channel, and
angle.

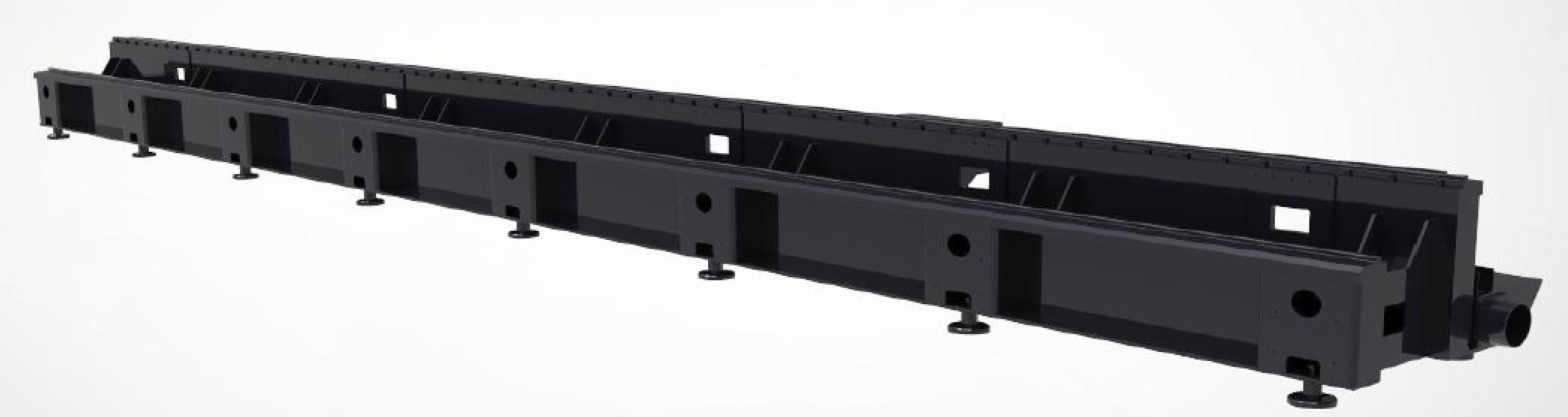

MACHINE BODY
ACCURL steel frames bed adopts welding
structure, rough machining after annealing, then vibration aging treatment, and then finishing, can completely eliminate the stress of welding and machining,good rigidity, high precision, can maintain long time use without deformation.

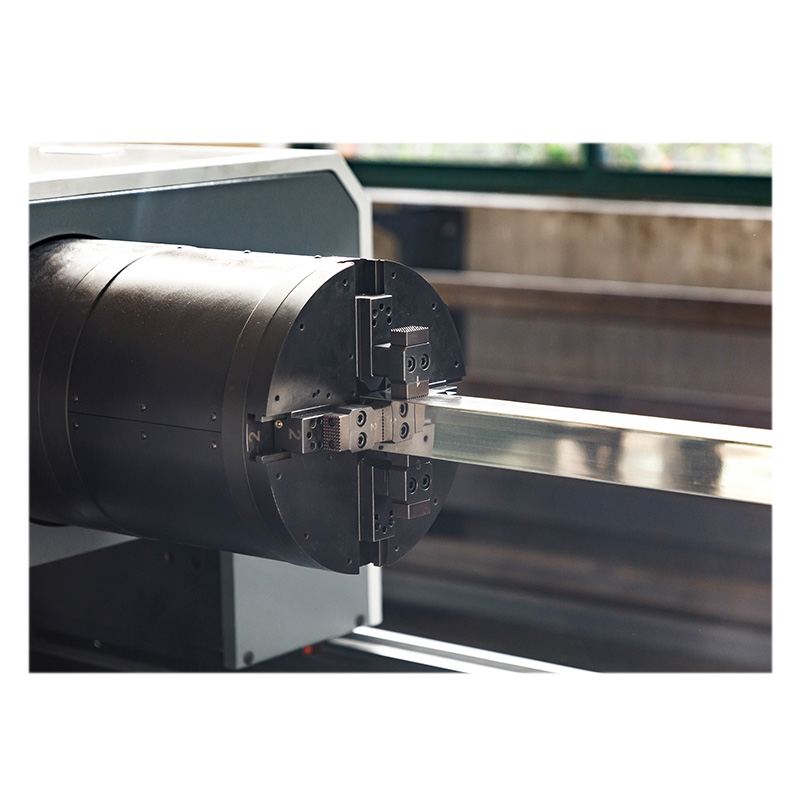

CHUNKS AND CLAWS
Two high quality rotate chuck move with synchronous rotation, which ensure tube holding more steady . It reduce tube vibration to minimum, with solid guarantee for high accuracy in complicate tube figure.Suitable for cutting tube with diameter range from Ø20mm to Ø320mm.

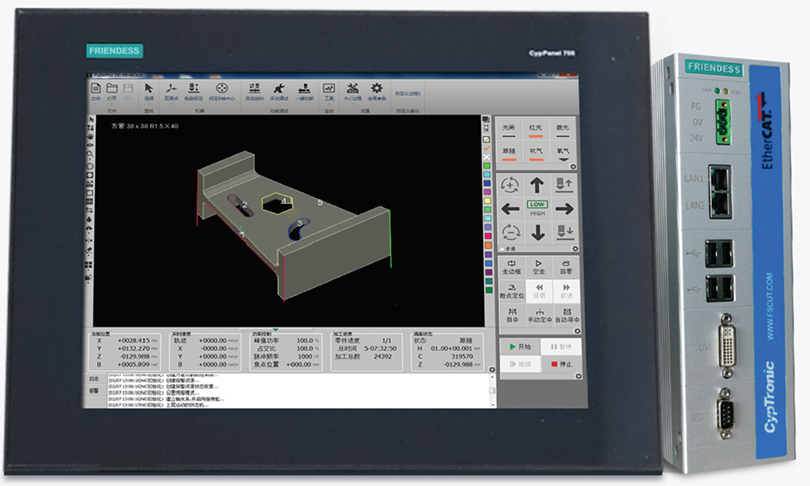

CNC CONTROL SYSTEM
The FSCUT-5000 laser cutting control system of an tube laser cutting control system. Widely used in the field of metal and
nonmetal laser cutting. Because of its outstanding performance in the field of fiber laser cutting, by the vast number of high-end users.
| MACHINE DIMENSION AND WEIGHT |
| MACHINE MODEL |
3015 |
4020 |
6020 |
| Lenght(mm) |
10000 |
11200 |
14000 |
| Width(mm) |
3080 |
4100 |
4100 |
| Height(mm) |
2250 |
2250 |
2250 |
| Weight(kg) |
12000 |
15000 |
18000 |
