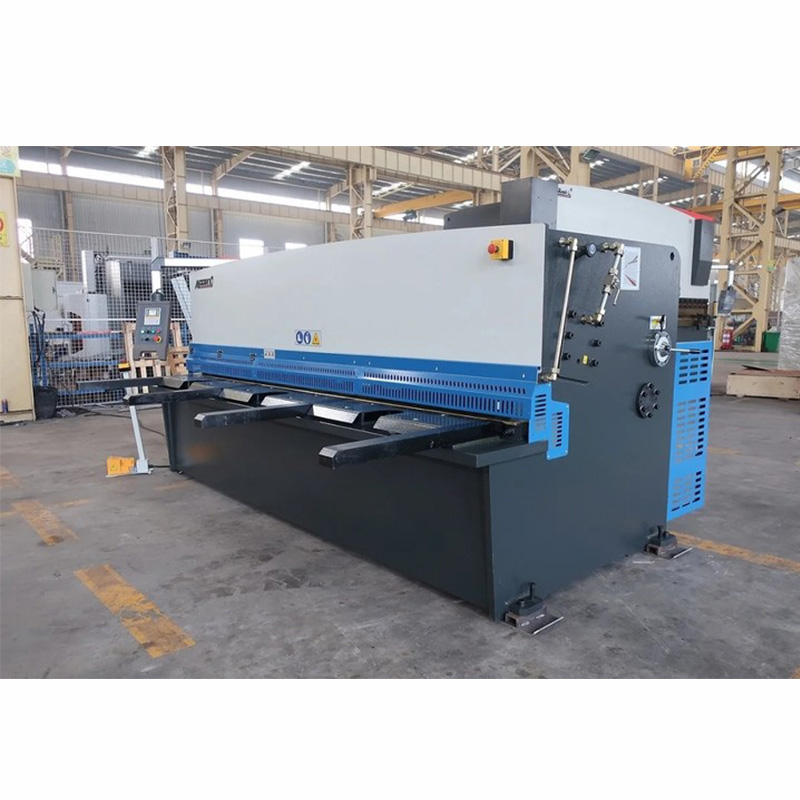

Hydraulic CNC Shearing Machine for Metal Shear Cutting Machine
Standard Equipment:
1. Wear resistant blades for Top blade 4 cutting edge and Bottom blade 4 cutting edge.
2. Portable foot pedal is eligible for single and automatic cutting.
3. ESTUN E21s NC controller System.
4. NC controlled motorized backgauge system.
5. 600 mm motorized back gauge system with 0.1 mm accuracy.
6. Front support arms with T slot, ruler and flip stop.
7. Squaring arm.
8. Scales with metric and inches.
9. Cutting line illumination and shadow line.
10. Central lubrication system.
11. Front finger protection guard appropriate to CE norms, 1 m left side collapsible and switch protected.
12. Rear sliding plates.
13. Front sliding plates with ball bearings on the table.
MACHINE DESIGN
ACCURL Shears features a rigid frame for min deflection under the load. The frame steels are German origin and designed using SOLIDWORKS 3D programming and made with quality steel Improved Q235 using the latest technology.
Feature:
* The machine welding is made by welding plant and welding robots.
* After the welding,we make stress relief process by vibration system.
* After the stress relief process machine frame goes to CNC 5 axes machining centers for accuracy.
* Allreference surfaces and connection holes are machined.
| Type |
Cut Thickness
mm |
Cut length
mm |
Back Gauge
mm |
Throat Depth
mm |
Main Motor
kw |
| MS7-4×2500 |
4 |
2500 |
600 |
100 |
5.5 |
| MS7-4×3200 |
4 |
3200 |
600 |
100 |
7.5 |
| MS7-4×4000 |
4 |
4000 |
600 |
100 |
7.5 |
| MS7-6×2500 |
6 |
2500 |
600 |
120 |
7.5 |
| MS7-6×3200 |
6 |
3200 |
600 |
120 |
7.5 |
MS7-6×4000
|
6 |
4000 |
600 |
120 |
7.5 |
MS7-6×6000
|
6 |
6000 |
600 |
120 |
11 |
MS7-8×2500
|
8 |
2500 |
600 |
120 |
7.5 |
MS7-8×3200
|
8 |
3200 |
600 |
120 |
7.5 |
MS7-8×4000
|
8 |
4000 |
600 |
120 |
11 |
MS7-10×3200
|
10 |
3200 |
600 |
120 |
11 |
MS7-10×4000
|
10 |
4000 |
600 |
120 |
18.5 |
MS7-12×2500
|
12 |
2500 |
800 |
170 |
18.5 |
| MS7-12×3200 |
12 |
3200 |
800 |
170 |
18.5 |
| MS7-12×4000 |
12 |
4000 |
800 |
170 |
18.5 |
| MS7-12×6000 |
12 |
6000 |
800 |
320 |
30 |
| MS7-16×2500 |
16 |
2500 |
800 |
310.5 |
18.5 |
| MS7-16×3200 |
16 |
3200 |
800 |
320 |
18.5 |
| MS7-16×4000 |
16 |
4000 |
20-1000 |
320 |
18.5 |
| MS7-16×6000 |
16 |
6000 |
20-1000 |
320 |
22 |
| MS7-20×3200 |
20 |
3200 |
1000 |
320 |
30 |
| MS7-20×6000 |
20 |
6000 |
1000 |
150 |
55 |
| MS7-25×2500 |
25 |
2500 |
1000 |
325 |
37 |
MS7-25×3200
|
25 |
3200 |
1000 |
325 |
37 |
MS7-32×2500
|
32 |
2500 |
1000 |
350 |
45 |
MS7-32×3200
|
32 |
3200 |
1000 |
350 |
45 |
SHEARING PROCESS
Perfect design in every aspect; By choosing the new and improved CNC Swing Beam Shears MS7 Series, you will bring modern-day technology to your company with maximum
safety, high accuracy and unique ease of use.
Blade gap, cutting length are all adjusted based on material selection and thickness automatically.
QUALITY
ACCURL, known as one of the top worldwide manufacturers in the sheet metal industry,
proudly announces its latest shear model to the market,Variable Rake Hydraulic Shears.
The critical parts of the Accurl shearing machine are manufactured in Germany.The carefully selected components come from long-term partners. We rely on our quality and therefore give our shears a 3-year warranty.
CNC CONTROL UNIT
* 7" widescreen TFT Colour LCD display * Back / front gauge control
* Panel based housing
* Retract function
* Cutting angle and gap control
* Stroke length limitation
* Manual movement of all axes
* Force control
* Return to Sender function
* Program memory for 100 programs
* Sheet support system.
DAC360T CNC Control Unit
ACCURL has chosen the very powerful new generation DELEM DAC360T offers an higher level of efficiency in programming and control of guillotine. The winning MADE in Netherlands design and the high quality of all the construction details, guarantee prestigious performances and long product life.
